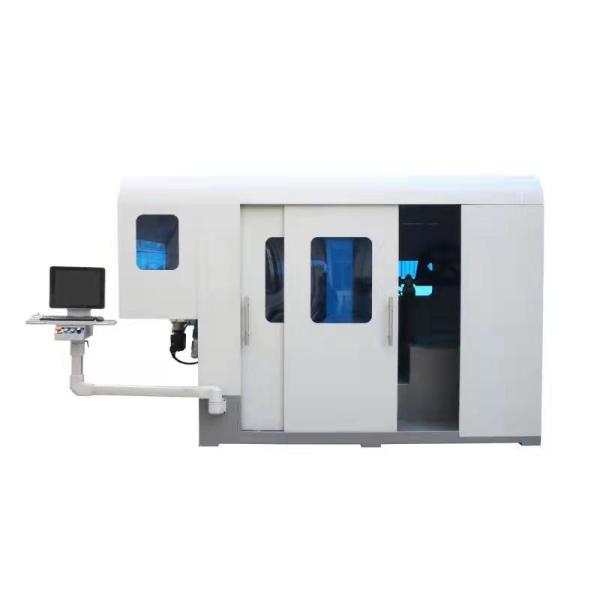

12 Axes Camless CNC Wire Spring Machine with Japan motor
Parmeters
| Model | HYD-60T-12A |
| Number of Axes | 12 Axes |
| Wire Diameter | Low carbon Steel:3-8mm High carbon Steel:2-6mm |
| Lead Rail | Distance of 130mm |
| Wire Feeding Number | 4 pairs |
| Max Wire Feed Speed | 80m/min |
| Max Error | +/-0.1(Length) |
| Servo Motor Power | 50.7kw |
| Reducer | 11pcs |
| Min Angel Length | 4 Time wire Diameter |
| Machine Dimension | 2600*1400*2050mm |
| Machine Weight | 4500kg |
Machine Features
1. Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.
2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track Design, you can adjust the left and right, more flexible adjustment.
3. Taiwan helical gear reducer, the intensity more secure.
4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.
5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.
Product made by our spring machine
Q: How can I get training if have no experience about wire forming machine?
A: We will give 5 days training in our factory, we warmly welcome you to our factory to check and learn machine training before shipment. We will send manual book with machine and also can send video to show you how to run machine if you have doubts.
Q: If computer can set customer own language to let their work to run the machine?
A: Surely,we can set two languages in the controller, we can set the language you asked, we just need your help about some key translate to load into controller.
